Nominal diameter: DN15~600mm
Pressure rating: PN 16/25/40/64/100/160
Working temperature: -29℃~550℃
Connection type: flange, weld, wafer
Actuator: manual, gear, pneumatic, electric
Medium: water, steam, oil, Nitric acid, Acetic acid etc

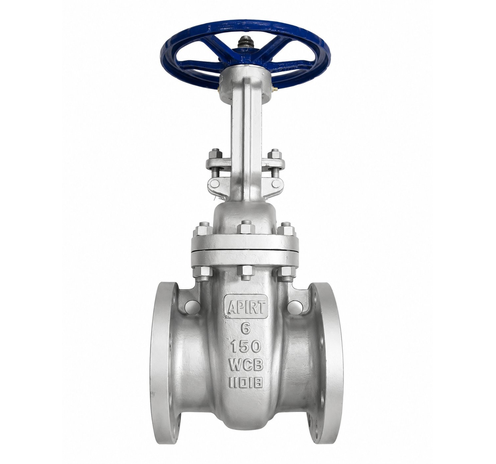

The valve is applicable to various industries such as petroleum, chemical industry, electric power, steel, mining, heating, etc. The medium is water, oil, steam, acid medium and other pipelines under various working conditions.
Precision Casting Valve body can ensure valve installation and sealing requirements.
Compact structure, reasonable design, small operation torque, easy opening and closing.
Great port, port smooth, no dirt accumulation, small flow resistance.
Smooth Medium flow, no pressure loss.
Copper and the hard alloy sealing, corrosion resistance and flush resistance.
| DN | NPS | L | D1 | D2 | L4 |
| 50 | 2'' | 43 | 86 | 92.3 | 240 |
| 65 | 2 1/2'' | 46 | 101 | 107 | 240 |
| 80 | 3'' | 46 | 116 | 122 | 240 |
| 100 | 4'' | 52 | 148 | 153 | 270 |
| 125 | 5'' | 56 | 174 | 179 | 320 |
| 150 | 6'' | 56 | 204 | 208.4 | 320 |
| 200 | 8'' | 60 | 252 | 262.3 | 380 |
