Rubber Hose

Product Advantages:

Flexible and bend-resistant, no cracking under repeated bending.

Oil and high-temperature resistant for harsh working environments.

High pressure resistant and leak-proof for safe fluid transmission.

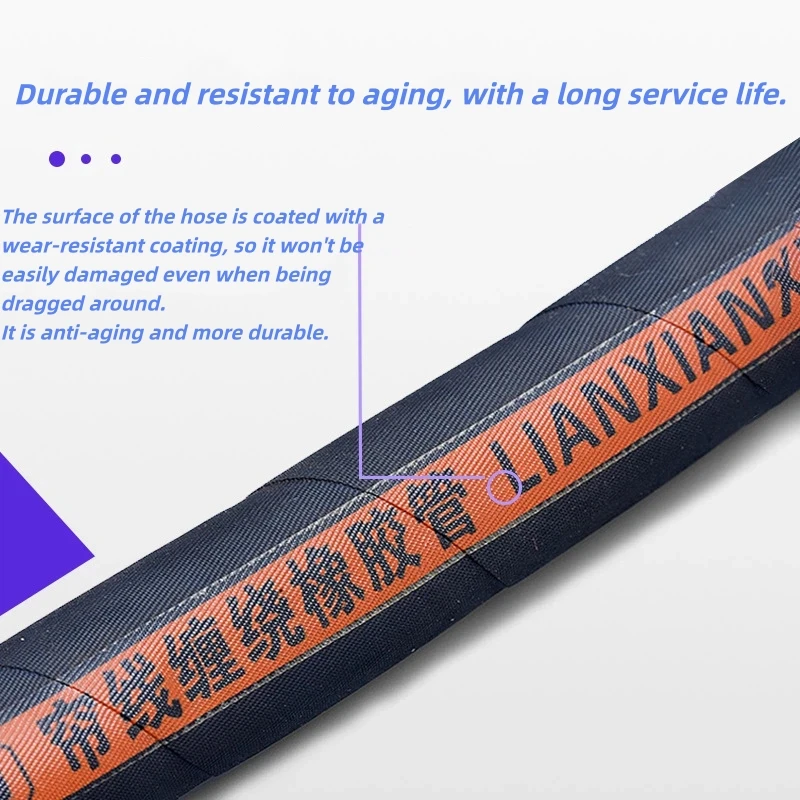

Wear and aging resistant, extending service life effectively.

Various sizes and custom lengths, diameters and structures available.

Share:
Chat Now Inquire Now

Rubber Hose | High Temperature Oil Resistant Flexible Industrial Rubber Hose

High-quality industrial rubber hoses with flexible, wear-resistant, aging-resistant, oil and temperature resistant performance. Suitable for water, air and oil delivery, mechanical and hydraulic systems. Various sizes and custom options available. Welcome bulk inquiries.

Features



Materials

Natural Rubber: High elasticity and good resilience, wear‑resistant for water & air delivery, poor oil resistance.

NBR (Nitrile Rubber): Excellent oil‑resistance and abrasion resistance, good mechanical performance for oil and hydraulic lines.

EPDM: Heat‑ozone‑aging resistant, works for hot water and weak acid‑alkali, not suitable for oil media.

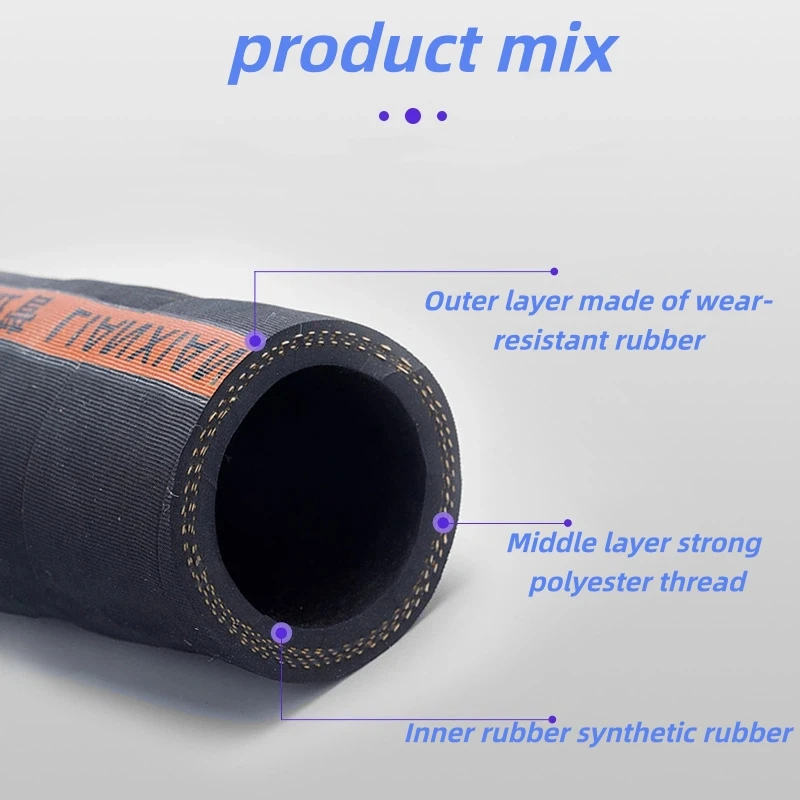

Fiber Reinforcement Layer: Improves tear resistance and pressure‑bearing capacity while keeping flexibility.

Steel Wire Braid Layer: High tensile strength, greatly boosts pressure‑resistance for high‑pressure hydraulic applications.

Product Advantages

Industrial rubber hoses are highly flexible for multi‑angle routing in complex narrow spaces without cracking or leakage. With various rubber and reinforcement options, they resist temperature changes, moisture and mild corrosion to cut long‑term maintenance and replacement costs.

Functions & Applications

As vital flexible pipe components, rubber hoses transfer water, air, oil, hydraulic fluid and other industrial media. They overcome rigid pipe limitations, deliver flexible connection and vibration buffering to secure stable pipeline operation.

Parameter

Inner Diameter Outer Diameter Reinforcement Layers  Working Pressure Burst Pressure MPa Max Length
inch mm mm / bar psi bar psi m ft
1/2" 13 21±1 2-4 16 240 48 720 40 132
5/8" 16 24±1 2-4 16 240 48 720 40 132
3/4" 19 27±1 2-4 12-20 180-300 36-60 540-900 40 132
1" 25 36±1 2-4 12-20 180-300 36-60 540-900 40 132
1¼" 32 44±1 4 16 240 48 720 40 132
1½" 38 52±1 4 16 240 48 720 40 132
2" 51 67±1 12-20 180-300 36-60 540-900 20 66
2½" 64 82±1 4-6 10-16 150-240 30-48 450-720 18 60
3" 76 96±1 4-6 10-16 150-240 30-48 450-720 18 60
3.5" 89 109±1 6 10 150 30 450 18 60
4" 102 122±1 6 10 150 30 450 18 60
