Rubber metal pipe connectors are installed specifically to intercept undesirable sound transmissions and dampen vibrations in pipelines. In particular, they are used in houses, hospitals and schools as these are places where noises caused by industrial equipment, pumps or burners can be very disruptive
Rubber metal pipe connectors are installed specifically to intercept undesirable sound transmissions and dampen vibrations in pipelines. In particular, they are used in houses, hospitals and schools as these are places where noises caused by industrial equipment, pumps or burners can be very disruptive
*The quiet strength of rubber
CHANGHONGSHENG pipe connectors have a higher noise-absorption capability thanks to the rubber materials used. This is especially important in the constructional engineering of homes and schools.
*Advantages of CHANGHONGSHENG rubber-metal pipe connectors:
. Interception of sound transmissions and noise-damping properties
. Damping of vibrations
*Where rubber-metal pipe connectors are used:On industrial equipment
.On motors
.On machines
.On pumps
.On compressors
*Established sectors for CHANGHONGSHENG rubber-metal pipe connector:
Building services engineering
Heating engineering
Water supply and water treatment

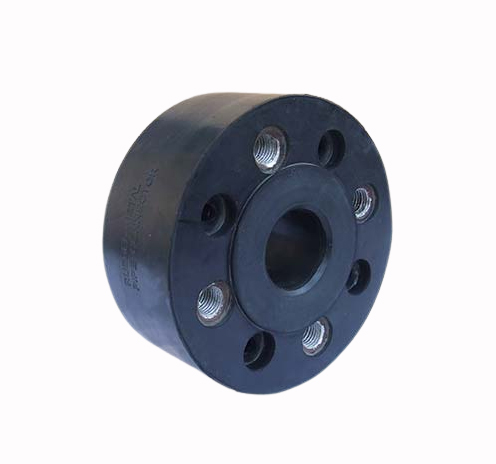

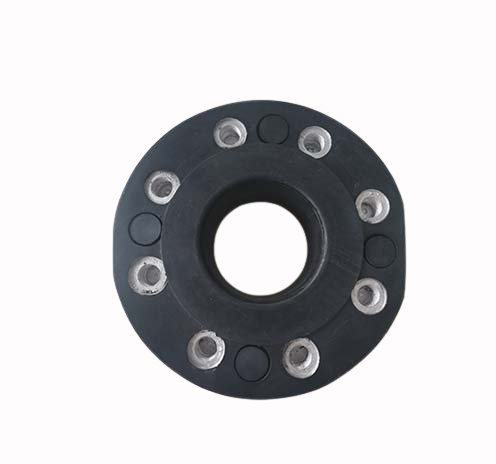

Structure:

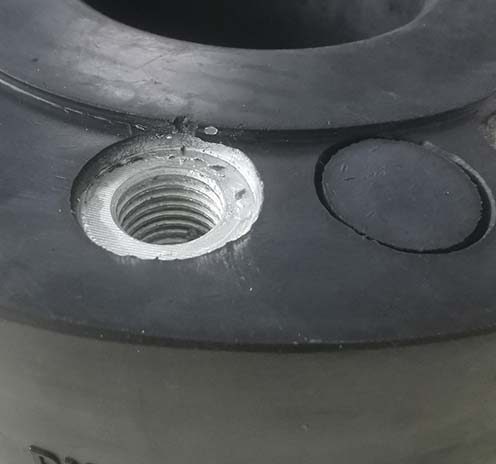

Rubber body with fully embedded steel flanges
Damping, movement compensation:
Rubber-metal pipe connectors dampen noise and vibration caused by appli-
ances, motors or pumps. Movement cannot be absorbed by these rubber-
metal pipe connectors.
Fixed points:
Robust pipe fixed points and correct pipeline routing are necessary to absorb the axial forces.
| Main connecting dimension（mm） | ||||||||||
| DN | BL | Pressure Rating MAX |
DIN PN6 Flange to DIN PN6 | DIN PN10 Flange to DIN PN10 | ||||||
| Flange | Bolt Circle | Thickness | Weight Kg |
Flange | Bolt Circle | Thickness | Weight Kg |
|||
| φD | φK | n×M×L | φD | φK | n×M×L | |||||
| 20 | 70 | 10 | 90 | 65 | 4×M10×14 | 1.5 | 105 | 75 | 4×M12×12 | 2.0 |
| 25 | 70 | 10 | 100 | 75 | 4×M10×16 | 1.9 | 115 | 85 | 4×M12×16 | 2.7 |
| 32 | 70 | 10 | 120 | 90 | 4×M12×16 | 2.8 | 140 | 100 | 4×M12×16 | 4.1 |
| 40 | 70 | 10 | 130 | 100 | 4×M12×16 | 3.0 | 150 | 110 | 4×M12×16 | 4.4 |
| 50 | 70 | 10 | 140 | 110 | 4×M12×16 | 3.2 | 165 | 125 | 4×M12×16 | 5.1 |
| 65 | 70 | 10 | 160 | 130 | 4×M12×16 | 4.0 | 185 | 145 | 4×M12×16 | 6.2 |
| 80 | 70 | 10 | 190 | 150 | 4×M16×18 | 6.5 | 200 | 160 | 8×M12×18 | 7.5 |
| 100 | 70 | 10 | 210 | 170 | 4×M16×18 | 6.9 | 220 | 180 | 8×M12×18 | 8.1 |
| 125 | 70 | 10 | 240 | 200 | 8×M16×18 | 8.5 | 250 | 210 | 8×M12×18 | 9.4 |
| 150 | 70 | 10 | 265 | 225 | 8×M16×18 | 9.4 | 285 | 240 | 8×M20×18 | 12.4 |
| 200 | 90 | 10 | 320 | 280 | 8×M16×18 | 14.5 | 340 | 295 | 8×M20×20 | 18.8 |
