Single band repair clamp

Product Advantages:

Forged Flange Connection: Durable and corrosion-resistant design for reliable pipeline repair.

Flexible Connection: Easy to install and maintain, saving time and effort.

Zinc Plated Finish: Protects against rust and corrosion, ensuring long-lasting durability.

Various OD Ranges: Available in multiple sizes to fit various pipe diameters.

High Pressure Capability: Suitable for systems requiring high-pressure sealing.

Chat Now Inquire Now

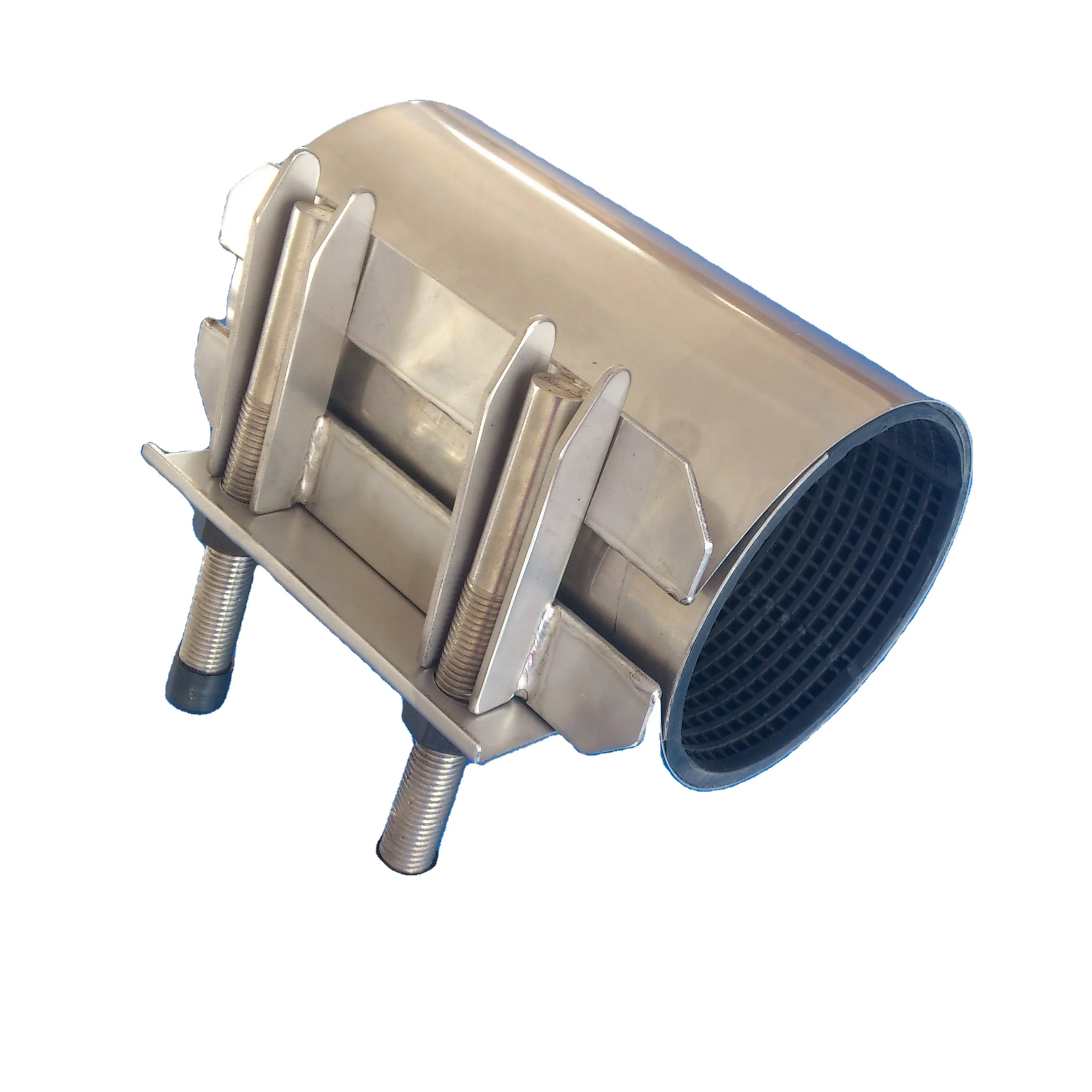

Stainless Steel Pipe Repair Clamp | Split Sleeve Coupling for Water Pipe Leak Emergency Repair

Stainless steel pipe repair clamp, also called split sleeve coupling. Made of 304 stainless steel with rubber gasket. Fast emergency leak repair for ductile iron, steel, PE water pipes. No pipe cutting needed. ISO & CE certified, customizable sizes.
Factory supply stainless steel pipeline repair clamp for pipe crack & pinhole leakage. Suitable for water, sewage & fire pipelines. High pressure & corrosion resistant, easy installation.

Product Description

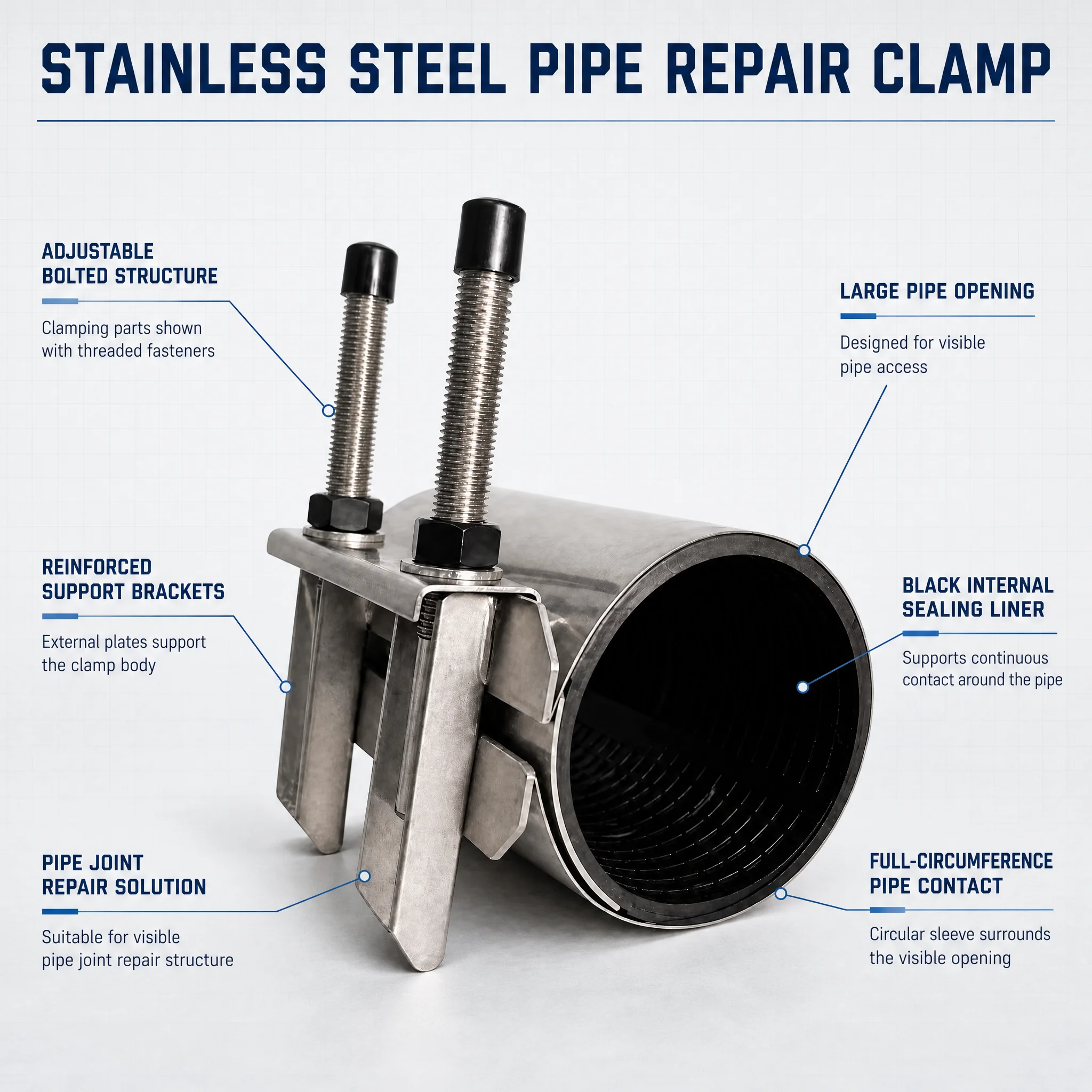

Stainless steel pipe repair clamp, also known as split sleeve coupling, is a professional fitting for emergency pipeline leak repair. The main body is made of 304 stainless steel with built-in anti-aging rubber gasket. It adopts split clamp structure. There is no need to cut the pipe. Wrap the clamp around the damaged pipe section and tighten bolts to compress the rubber gasket for sealing. It works for steel pipe, ductile iron pipe, PE pipe, PVC pipe, fixing pinholes, cracks and joint leakage. Widely used in municipal water supply, sewage, fire protection and chemical pipeline maintenance. ISO9001, CE and SGS certified.

Instructions

Pre-treatment: Shut off the medium in pipeline, clean rust and dirt around the leak point to keep pipe surface smooth.
Positioning: Open the repair clamp, align rubber gasket with the leakage spot, wrap the shell around the pipe.

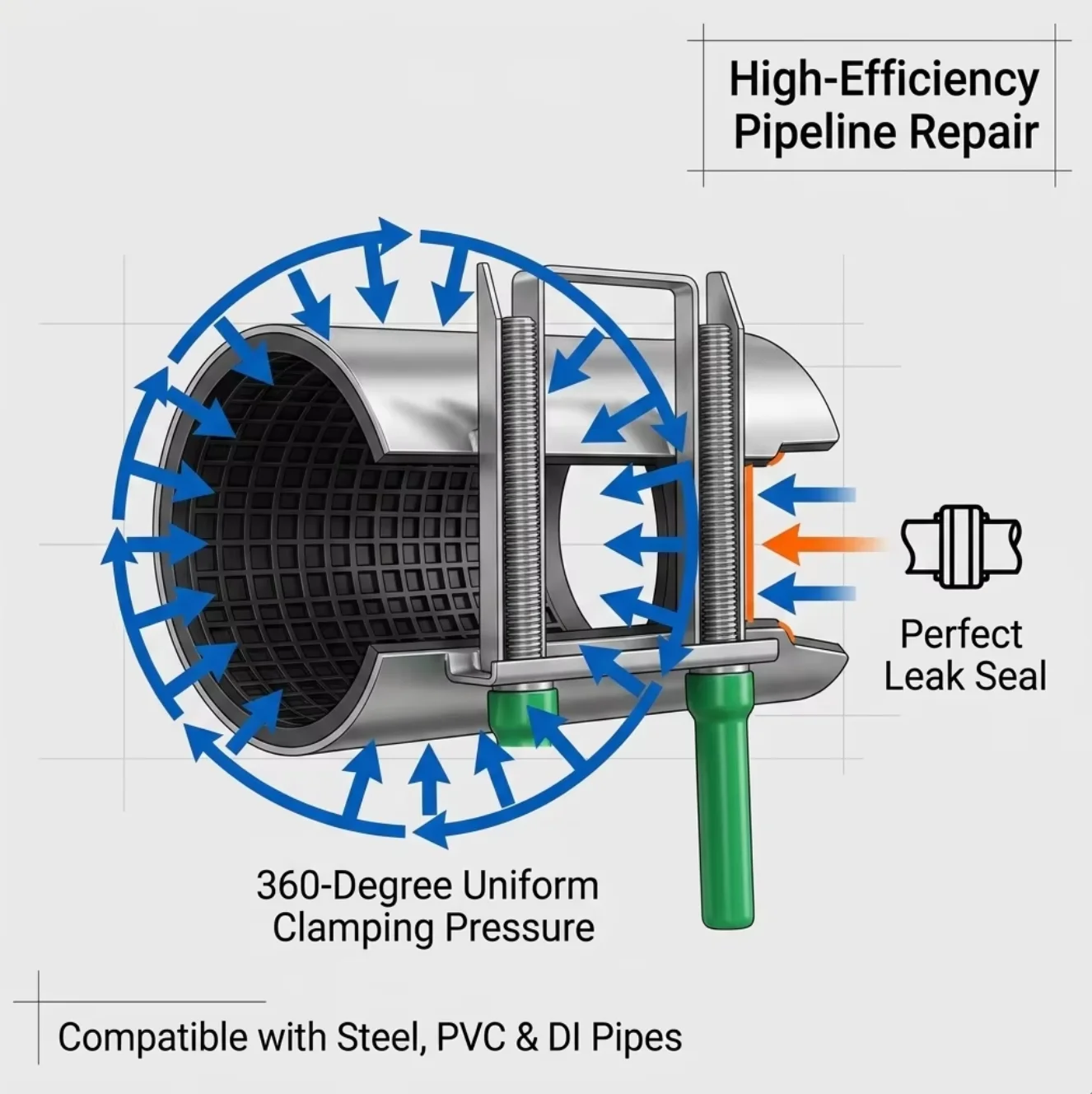

Tighten bolts: Tighten the bolts alternately and evenly to press rubber gasket against pipe wall until leak stops. Do not tighten one side only.
Pressure test: Restore pipeline pressure slowly and check no leakage.

Features

Fast emergency repair: No pipe cutting or welding required, save maintenance time.
Durable material: 304 stainless steel shell resists rust & corrosion; rubber gasket is pressure-resistant and long service life.
Wide compatibility: Fits ductile iron, steel, PE, PVC pipes for crack, pinhole and joint leak repair.
Stable pressure resistance: Reinforced structure ensures even clamping force for reliable sealing.
Easy installation: Split design, simple tools required.
Various sizes: Custom diameters available for different working conditions.

Parameter

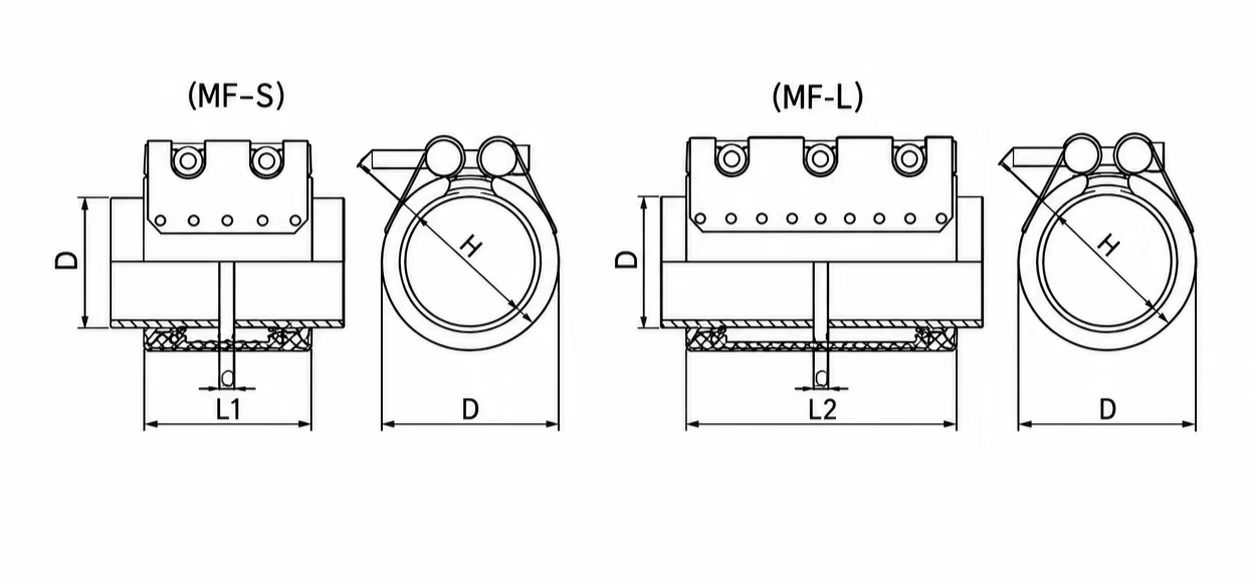

Technical Parameters
Pipe OD	OD Range	Ship	Industry	Dimensions					Screws	Screw Torque
OD （mm）	ODmin-ODmax （mm）	PN （bar）	WP （bar）	C （mm）	L1 （mm）	L2 （mm）	D （mm）	H （mm）	M	Nm
21.7	21-23	16	32	3	57	-	35	50	6	15
25	24.5-25.5	16	32	3	57	-	50	70	6	15
27.2	26-28	16	32	3	57	-	50	70	6	15
32	31.5-32.5	16	32	3	57	-	55	75	6	15
34	33-35	16	32	3	57	-	55	75	6	15
40	39.5-41.5	16	32	5	57	-	55	75	6	15
42	42-44	16	32	5	57	-	65	85	6	15
44.5	44-45.1	16	32	5	57	-	65	85	6	15
48.6	47-49	16	32	5	57	100	70	90	6	15
54	53.3-54.6	16	32	5	57	100	70	90	8	30
57	56.3-57.7	16	32	5	57	100	80	100	8	30
60.3	59-62	16	32	5	80	139	85	105	8	30
63	62.2-63.9	16	32	5	80	139	85	105	8	30
76.1	75-78	14	28	5	80	139	100	120	8	30
79.9	78.8-80.8	14	28	5	80	139	100	120	8	30
88.9	88-92	14	28	5	107	203	110	130	10	50
108	106-110	14	28	5	107	203	130	150	10	50
110	108.9-111.2	14	28	5	107	203	130	150	10	50
114.3	112-116	14	28	5	107	203	135	155	10	50
118	116.6-119.2	14	28	5	107	203	140	160	10	50
125	123.6-126.5	14	28	5	107	203	150	185	10	50
133	131.5-134.4	14	28	5	107	203	160	190	10	50
140	137-143	14	28	5	116	203	165	195	12	80
159	157-161	12	24	5	116	203	185	215	12	80
165.2	163.3-166.7	12	24	5	116	203	190	210	12	80
168	166-170	12	24	5	116	203	195	225	12	80
170	168.2-171.9	12	24	5	116	203	195	225	12	80
200	198.2-201.5	8	16	10	155	255	240	270	14	100
219	217-221	8	16	10	155	255	250	280	14	100
250	250-254	8	16	10	155	255	285	315	14	100
273	271-275	8	16	10	155	255	305	335	14	100
315	313-317	7	14	10	155	255	340	375	14	100
325	323-327	7	14	10	155	255	360	390	14	100
355.6	354-358	7	14	10	155	255	385	420	14	100
377	375-379	7	14	10	155	255	410	440	14	100
