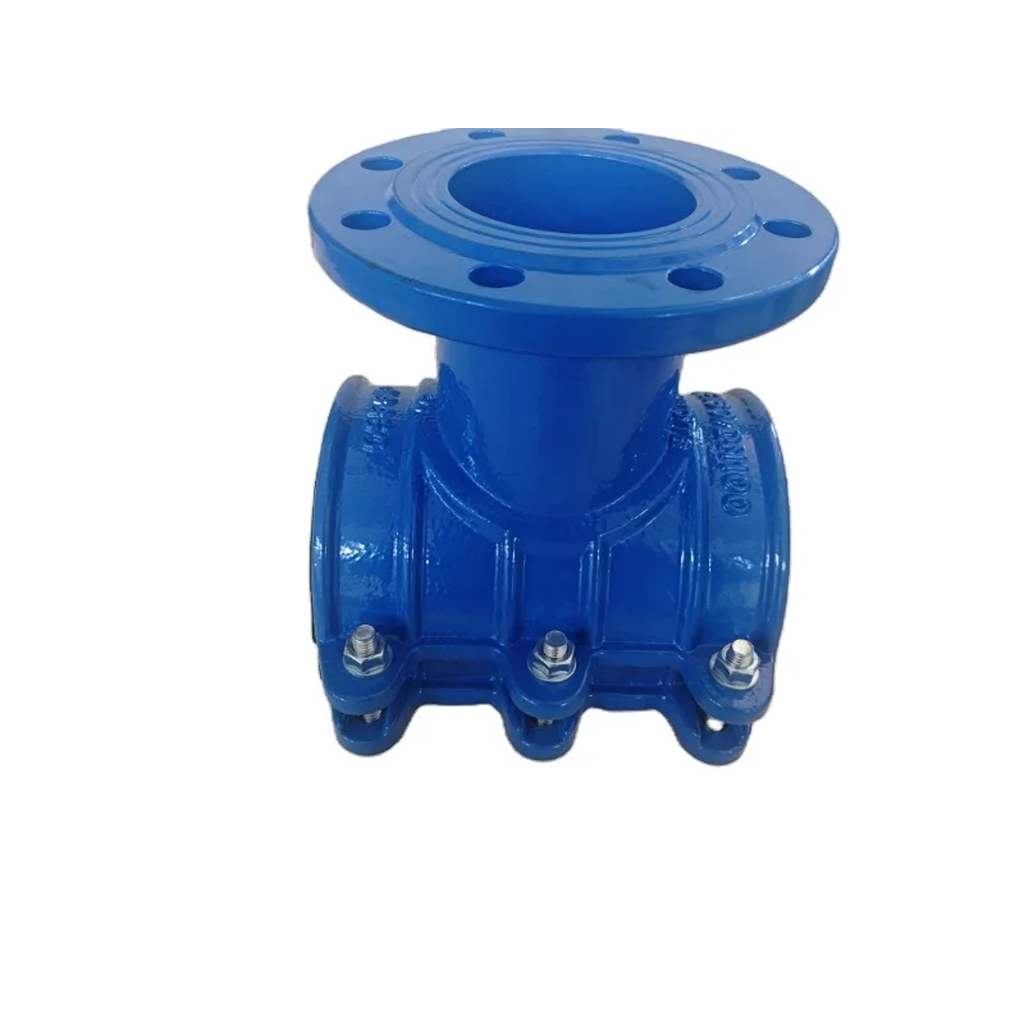

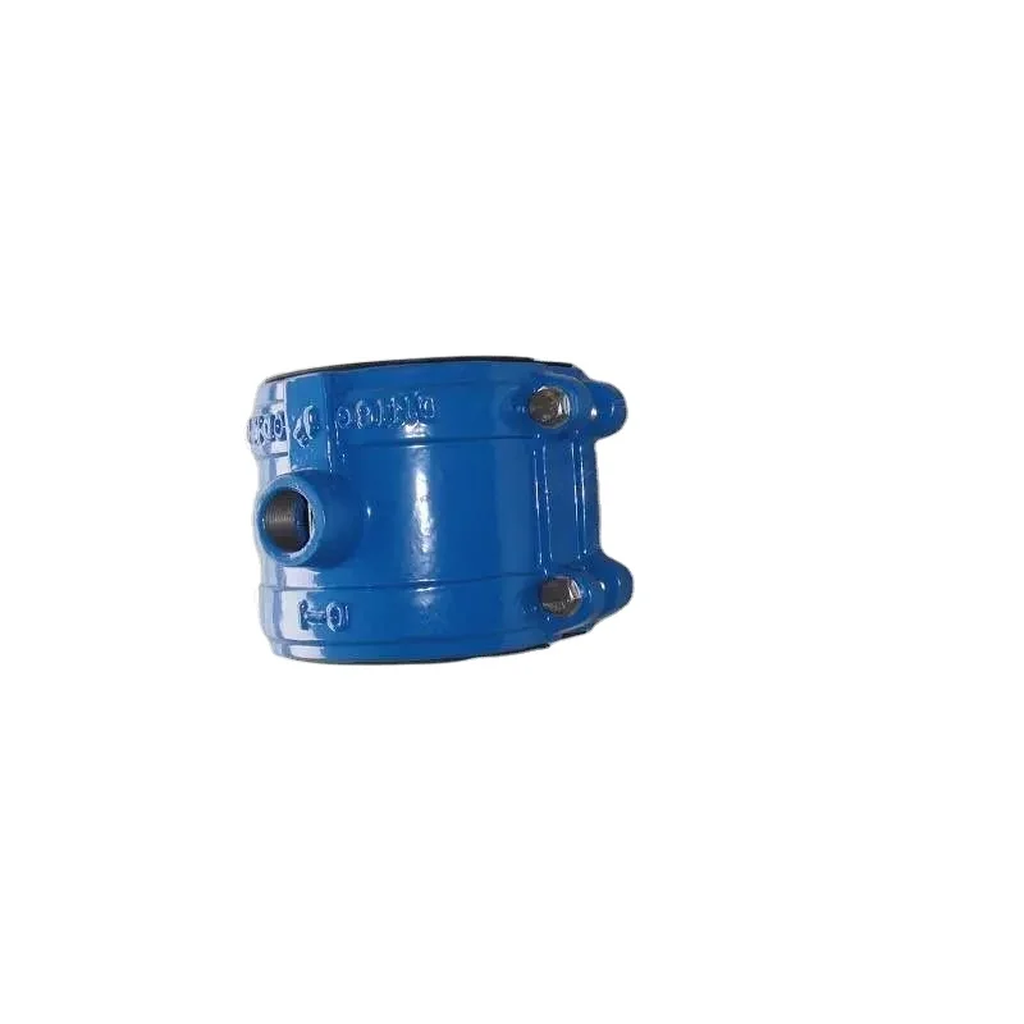

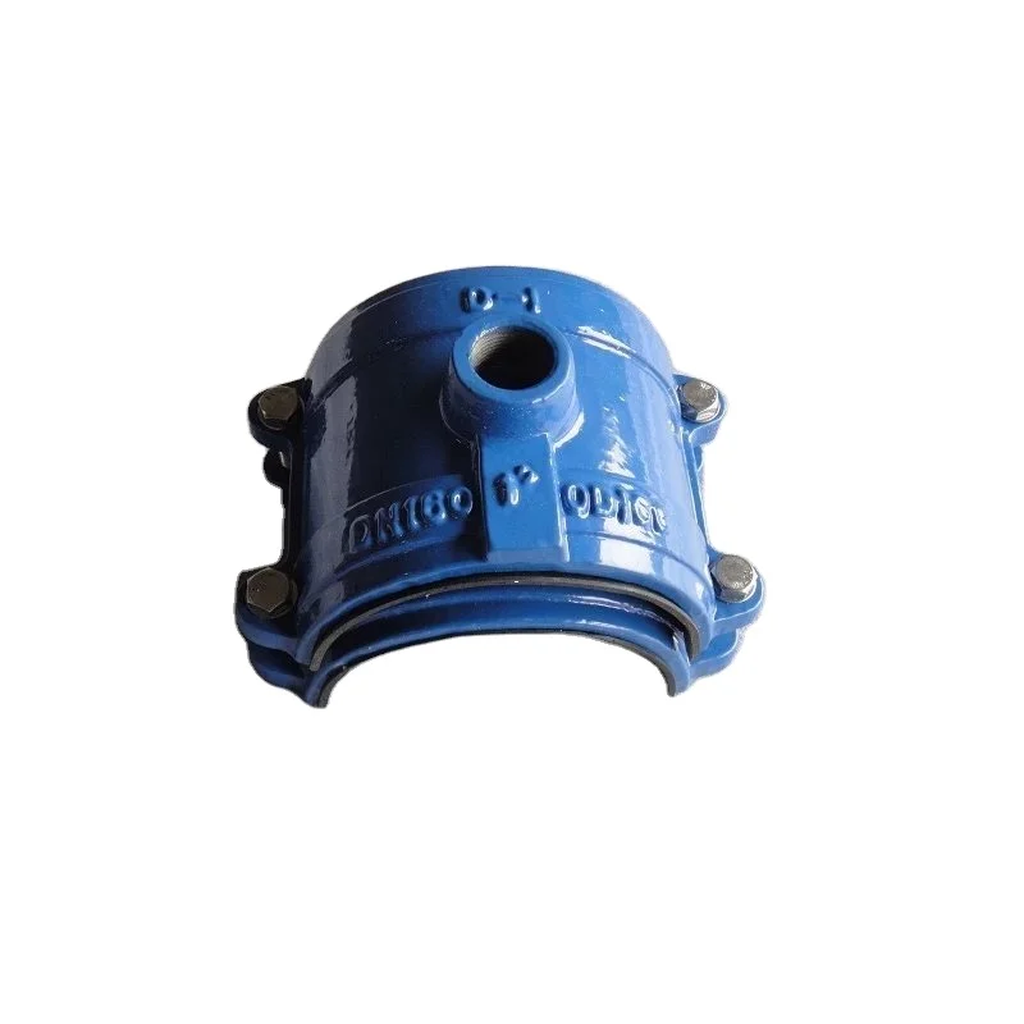

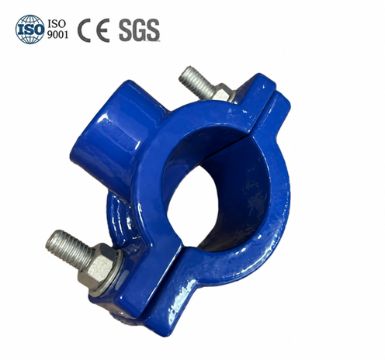

Saddle Clamp

Product Advantages:

Used for pipe tapping to create branch water connections.

Reliable sealing, allows tapping under pressure without pipe shutdown.

Made of ductile iron, high strength and good corrosion resistance.

Fits cast iron, PE and steel pipes with multiple sizes available.

Easy installation, bulk supply for engineering projects, custom service offered.

Share:
Chat Now Inquire Now

Saddle Clamp | Ductile Iron Pipe Saddle Clamp for Water Pipeline Branch

Ductile iron saddle clamps for water pipeline tapping & branch connection. Good sealing performance, fits cast iron, PE and steel pipes. Available for under‑pressure tapping. Various sizes in stock. Welcome project bulk inquiries.



Material

Main body: ductile iron with anti‑corrosion treatment. Sealing part: rubber gasket. Bolts: galvanized carbon steel.

Function

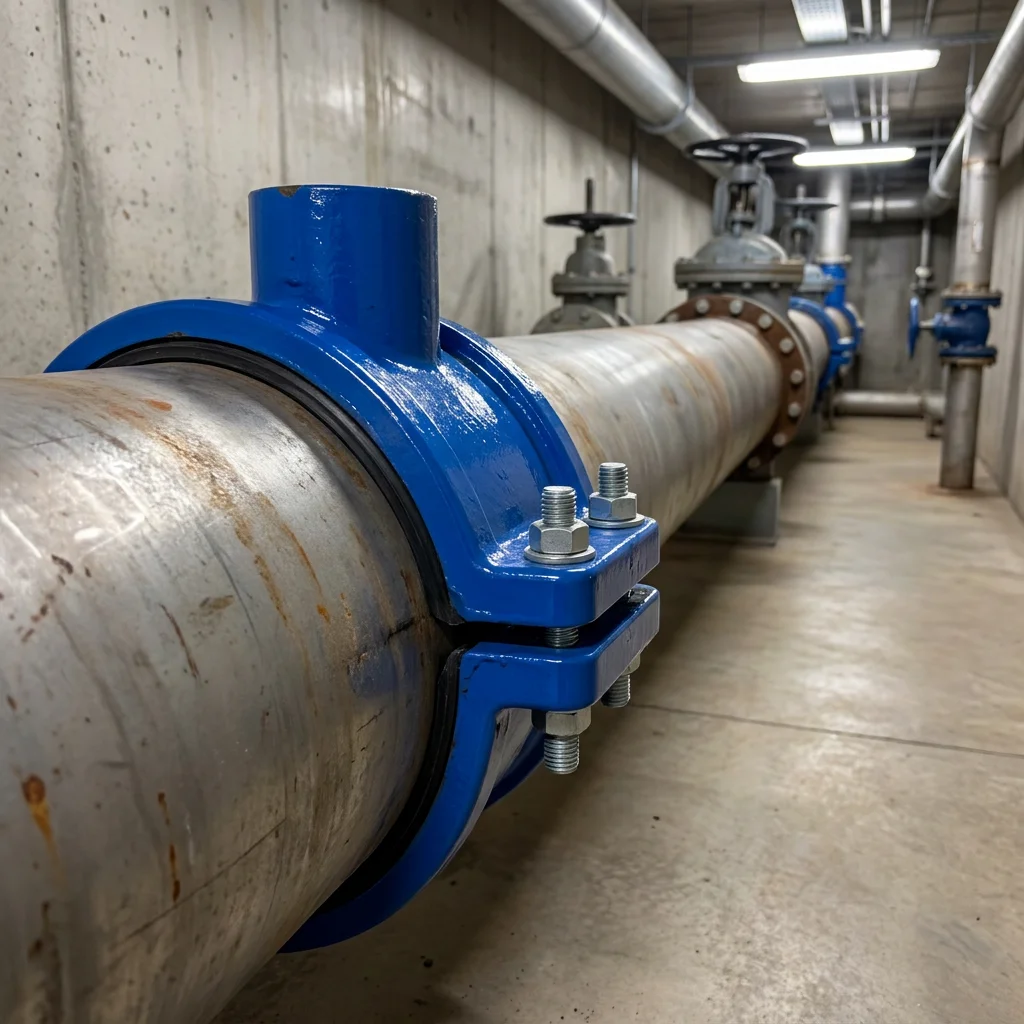

Mainly used for tapping water supply pipelines to create branch connections without cutting the main pipe. Widely applied in municipal water supply and pipeline renovation projects.

Advantages

  1. Tap under pressure, no need to cut main pipe or stop water supply.
  2. Saddle arc fits pipe wall perfectly; rubber gasket ensures leak‑proof sealing.
  3. High‑strength ductile iron body with good anti‑corrosion for underground outdoor conditions.
  4. Split‑clamp design with bolt fastening for fast on‑site installation.
  5. Compatible with cast iron, PE and steel pipes. Complete sizes for engineering bulk supply.

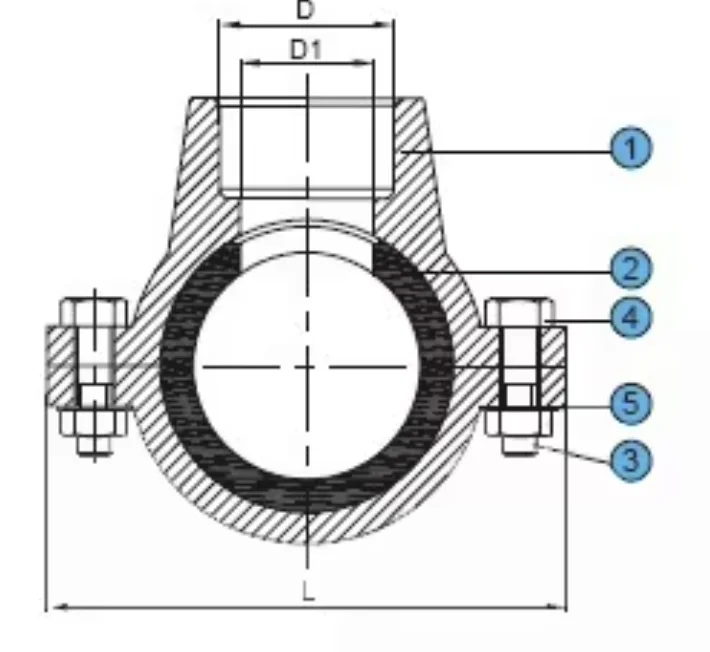

Parameter

DN D D1 H L L1
63 3/4" 38 57 124 100
63 1" 38 57 124 100
63 1 1/4" 40 62 124 100
63 1 1/2" 40 62 124 100
63 2" 40 68 124 100
75 3/4" 40 63 135 110
75 1" 40 63 135 110
75 1 1/4" 40 68 135 110
75 1 1/2" 40 68 135 110
75 2" 40 73 135 110
90 3/4" 40 71 150 110
90 1" 40 71 150 110
90 1 1/4" 40 75 150 110
90 1 1/2" 40 75 150 110
90 2" 50 80 150 110
110 3/4" 40 71 170 120
110 1" 40 71 170 120
110 1 1/4" 40 85 170 120
110 1 1/2" 50 85 170 120
110 2" 50 90 170 120
125 1" 40 87 192 120
125 1 1/4" 40 93 192 120
125 1 1/2" 50 93 192 120
125 2" 50 98 192 120
140 1" 50 96 208 120
140 1 1/4" 40 100 208 120
140 1 1/2" 40 100 208 120
140 2" 50 106 208 120
160 1" 50 106 230 120
160 1 1/4" 40 111 230 120
160 1 1/2" 40 111 230 120
160 2" 50 116 230 120
200 1" 40 132 282 120
200 1 1/2" 40 132 282 120
200 1 1/2" 50 137 282 120
200 2" 50 137 282 120
