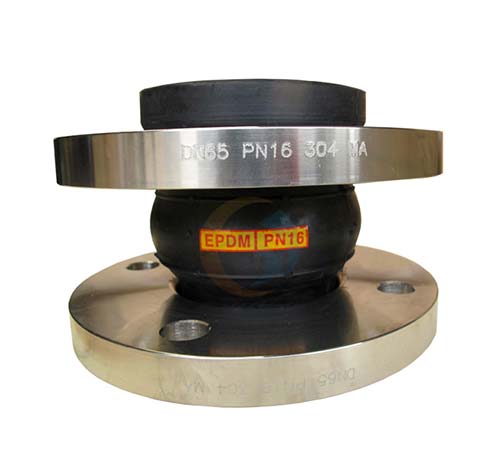

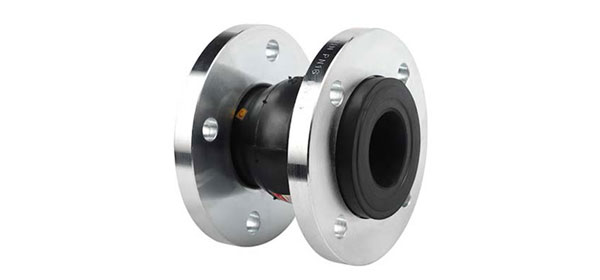

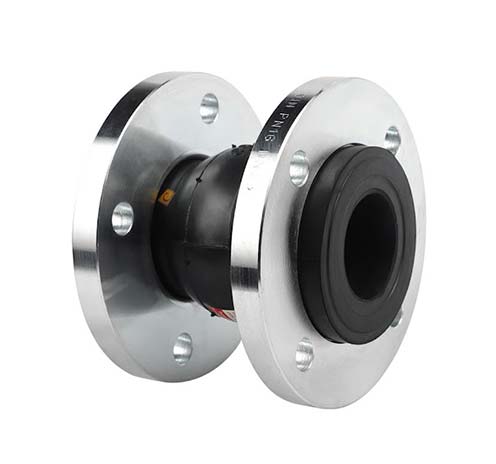

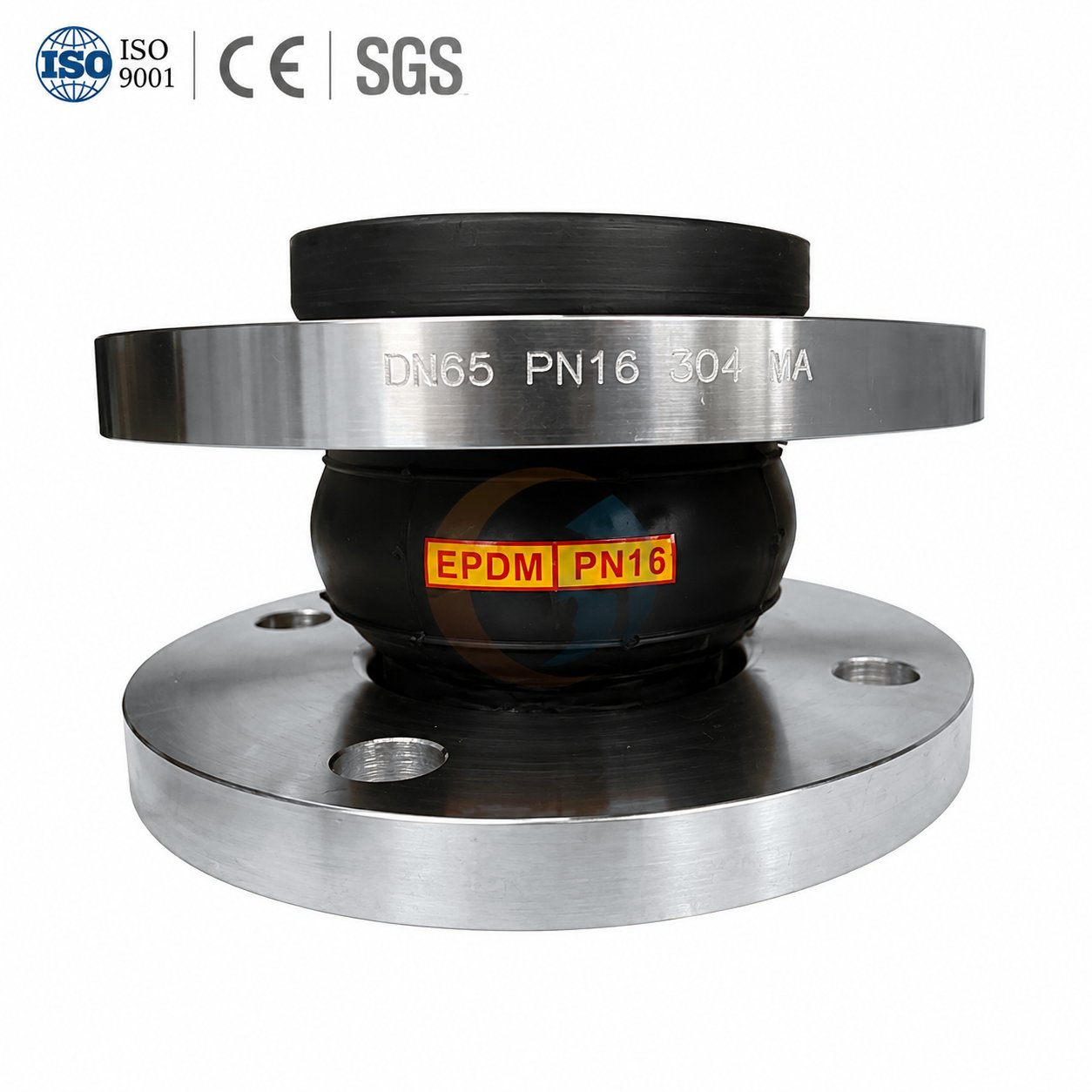

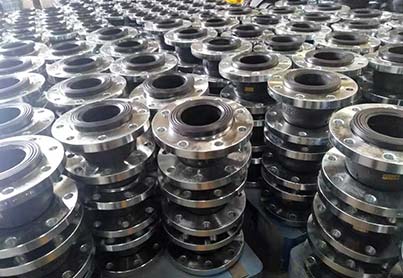

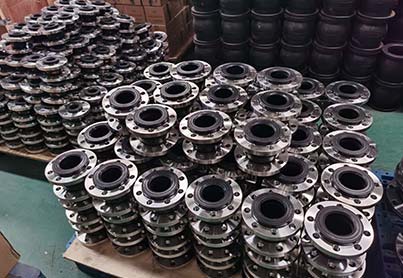

Single sphere rubber flexible joint

Brief Introduction:

Size:DN15-DN3600MM 1/2”~144”

Pressure:PN6/10/16/25/40/150LB/10K/16K

Flange:DIN,ANSI,BS,JIS or as your need

Chat Now Inquire Now

Rubber expansion joint

Rubber Expansion Joints provide time-tested ways to accommodate pressure loads, relieve movement stresses, reduce noise, isolate vibration, compensate for misalignment after plants go on stream, and prolong the life of motive equipment. rubber expansion joints are available in single – and multi-arch designs and are custom-engineered to fit your application requirements. They are specifically designed to reduce the need for maintenance, repair and manual assistance.

HENANCHANGHONG is one of the leading suppliers of high-quality expansion joint.Designed by the industry’s top experts and available in Single Sphere,Double Sphere,PTFE-lined, Threaded union type,seccentric reducing, concentric reducing,filled arch, lightweight and off-set configurations,and many other products, our products can be used to support a wide range of applications.

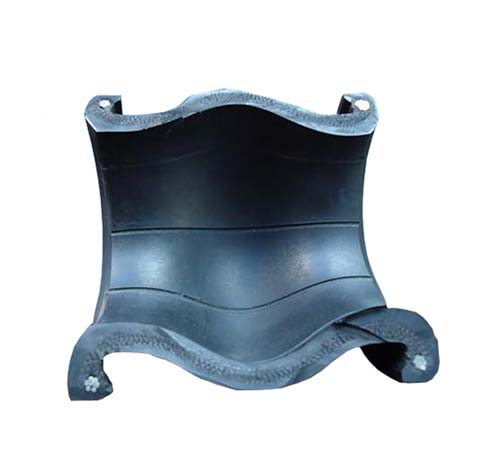

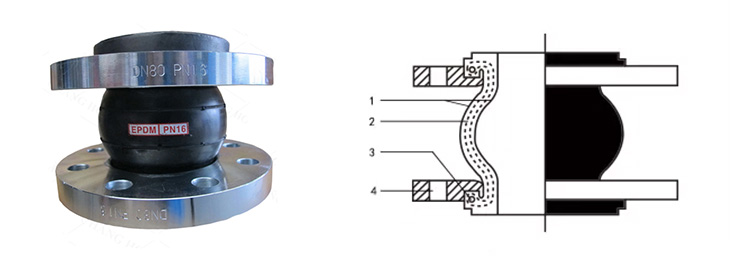

1	Outer/inner rubber	EPDM,NR,NBR,PTFE,BR,	Select different materials according to the media
		CR,BR+CR,FKM,Sylopute.
2	Reinforce	Nylon cord fabric	the density and number of layers determine the pressure
3	Pressurized ring	Steel wire strand	Prevent pressure bearing deformation from being pulled off
4	Flange	stainless steel,carbon steel,ductile iron.	Choose different materials according to your requirements

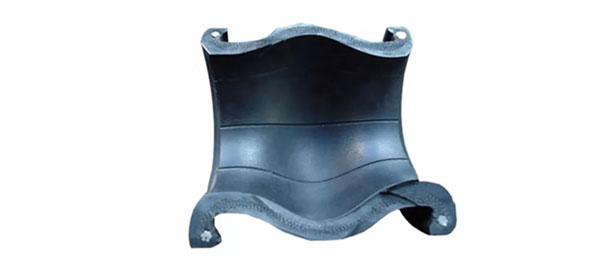

Advantage of the rubber

1.More than 55% rubber content

2.Enough nylon layers to ensure high pressure resistance

3.Cooper plated steel wire 10 layer of Nylon cord

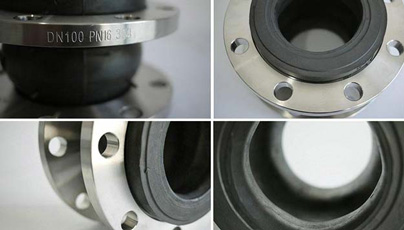

4.Smooth sealing surface

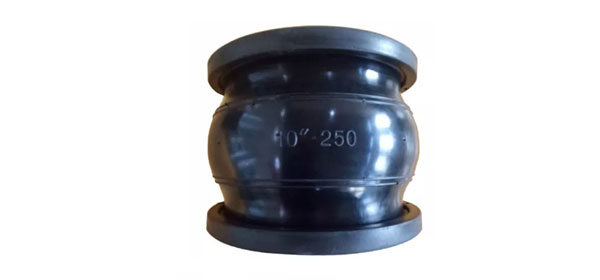

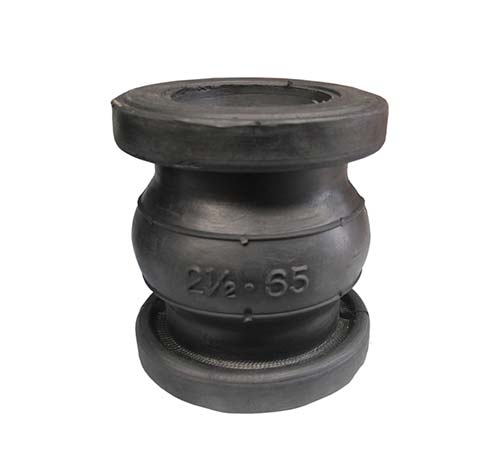

Advantage of the rubber ball

1.Mirror-like appearance

2.Have special lengths.Different length molds for every size

3.No leakage.

4.Rubber material: EPDMNR NBR PTFE BR CR BR+CR FKM Sylopute.

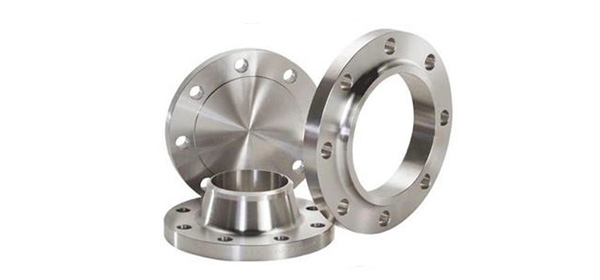

Advantage of flange

1.Hot-dip galvanizing floating flanges

2.Flange material:Carbon steel,Low Temp carbon steel,SS,Duples SS,Low Alloy Steel,Cast Iron,Ductile Iron

3.Have a certain corrosion resistance

4.No rust,No thin,No sand holes

Advantage of rubber joint

1.Service life up to 3 years.

2.Strong acid and alkali resistance,wear resistance,oil resistance,over food

3.More than 1600 sets of molds with diameter from DN15-DN4000,can meets customized need 100%.

Features

Six structure types: single sphere, double sphere, three sphere, pump suction sphere and elbow body. The spherical rubber joint is classified into three types: concentric and same diameter, concentric different diameter and eccentric different diameter.

Two forms of flange sealing surface: raised face flange seal and full plane flange seal.

Connection types: flange, threaded and hose clamp casing connection.

Working pressure range: 0.25MPa, 0.6MPa, 1.0MPa, 1.6MPa, 2.5MPa, 4.0MPa. According to the vacuum degree, the working pressure range are 32kPa, 40kPa, 53kPa, 86kPa and 100kPa.

1. rubber content:Up to 55%
2. Recycled rubber:0%
3. Service life:Up to 4 years
4. Different length of molds for every size meets all special lengths need
5. Above DN100 have the steel wire prevent it from being pulled off
6. Forbidden to use recycled rubber raw material,Real material can be seen
7. Warranty period: 5 years for NR products and 3 years for EPDM / NBR products

Parameter

Nominal diameter		Length （mm）	Flange centre distance		flange outer diameter		n-Φd		Axial Displacement		Horizontal movement （mm）	Deflexion angle	Special length （mm）
mm	inch	Length （mm）	PN10	PN16	PN10	PN16	PN10	PN16	Compression	Stretch	Horizontal movement （mm）	Deflexion angle	Special length （mm）
32	1 1/4	95	100	100	140	140	4_18	4_18	9	6	9	15°	130/150/200
40	1 1/2	95	110	110	150	150	4_18	4_18	10	6	9	15°	130/150/200
50	2	105	125	125	165	165	4_18	4_18	10	7	10	15°	130/150/200
65	2 1/2	115	145	145	185	185	4_18	4_18	13	7	11	15°	130/150/200
80	3	135	160	160	200	200	8_18	8_18	15	8	12	15°	130/150/200
100	4	150	180	180	220	220	8_18	8_18	19	10	13	15°	130/200
125	5	165	210	210	250	250	8_18	8_18	19	12	13	15°	130/150/200
150	6	180	240	240	285	285	8_22	8_22	20	12	14	15°	130/150/200
200	8	210	295	295	340	340	8_22	12_22	25	16	22	15°	130/150/200
250	10	230	350	355	395	405	12_22	12_26	25	16	22	15°	130/150/200
300	12	245	400	410	445	460	12_22	12_26	25	16	22	15°	130/150/200
350	14	255	460	470	505	520	16_22	16_26	25	16	22	15°	130/150/200
400	16	255	515	525	565	580	16_26	16_30	25	16	22	15°	130/150/200
450	18	255	565	585	615	640	20_26	20_30	25	16	22	15°	200
500	20	255	620	650	670	715	20_26	20_33	25	16	22	15°	200
600	24	260	725	770	780	840	20_30	20_36	25	16	22	15°	200/300
700	28	260	840	840	895	910	24_31	24_37	25	16	22	15°	300
800	32	260	950	950	1015	1025	24_34	24_41	25	16	22	15°	300

More than 2000 sets of molds with diameters from DN15 to DN4000 can be produced,with many special lengths and can be customized(including connection mode)
